From Version 1.36 the optional BAM (Bridge Alert Management) module was introduced.



It can be activated by checking the appropriate checkbox in the Program Settings.

This module is currently the only module that both receives and sends data in interaction with the user.





Operation is as follows:



As soon as the module is opened, it listens to incoming messages.

All data is ignored, except  ALC, ALF and ARC sentences.



When one of these messages is recognized, it is stored in a FIFO queue, waiting to be processed by the user.

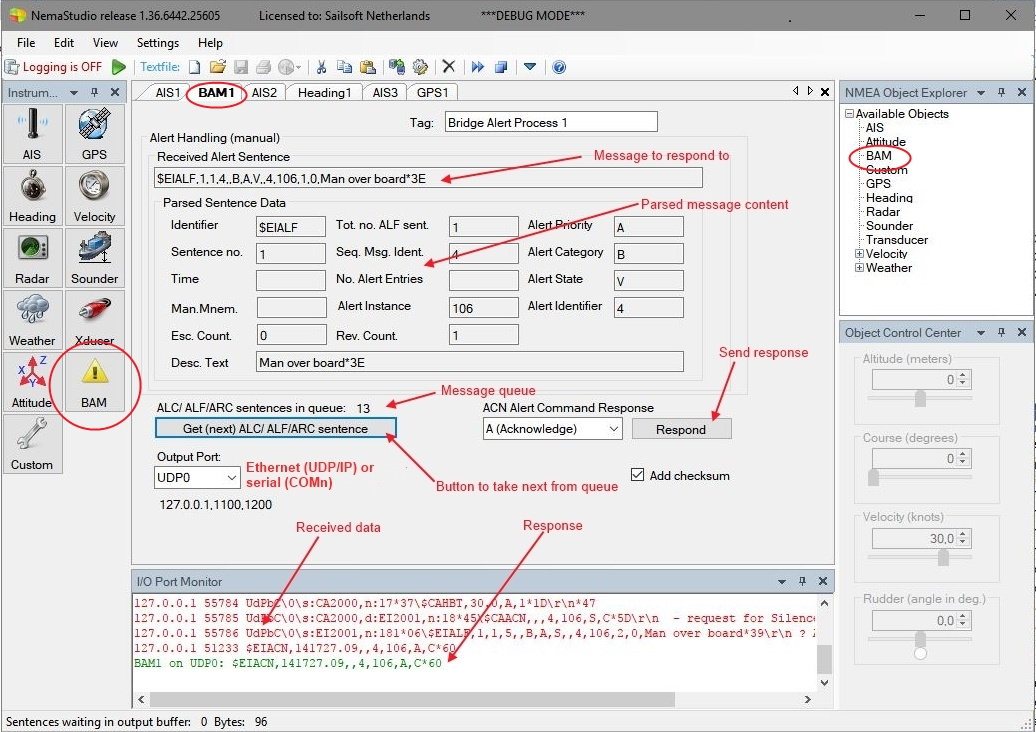

When the user click the Get Next button, the top sentence is taken from the queue and the details are shown in the form.

Now the user can ignore the message by Clicking Get Next again, or respond to the message with an ACN Response message.



This process continues as long as there are messages in the queue.
